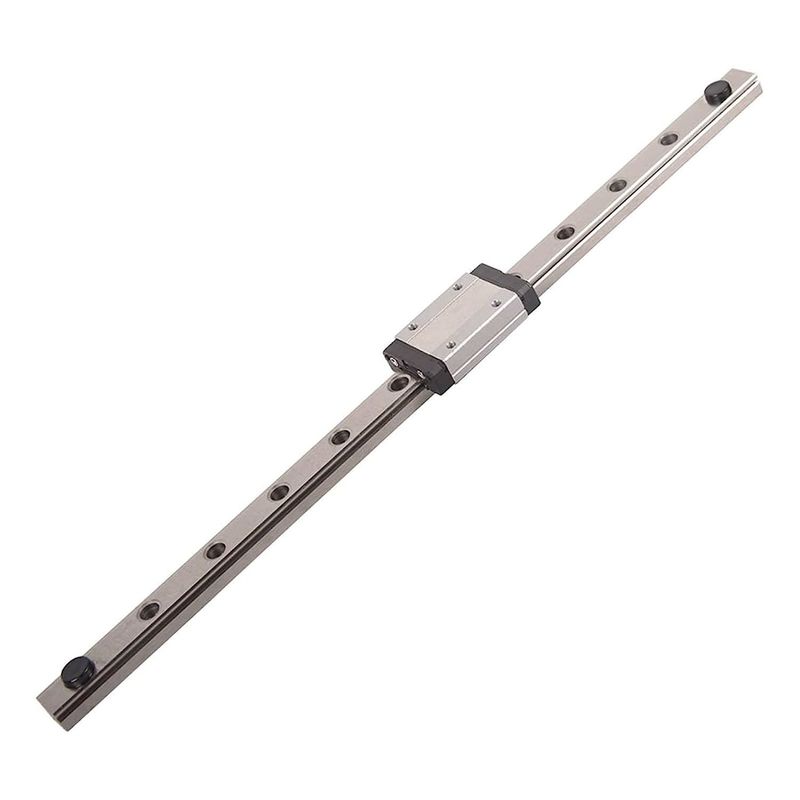

MGN12H 700mm Linear Rail Guide MGN12 Linear Rail with Stainless Steel MGN12H Carriage Block for 3D Printers, CNC Machine Upgrade, Machining and Other

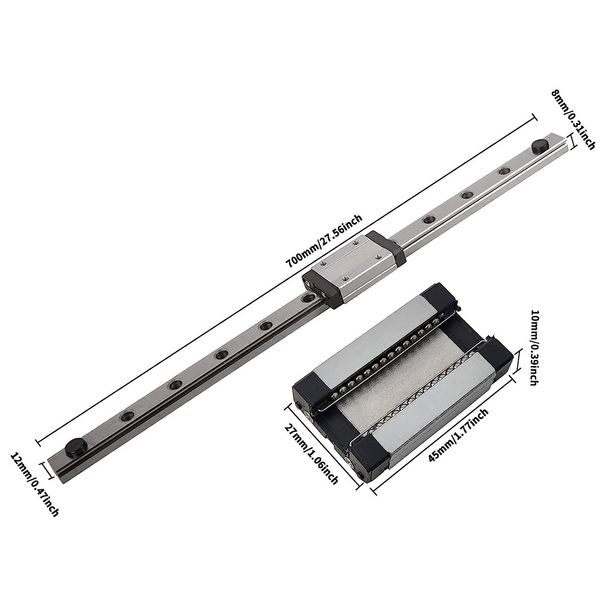

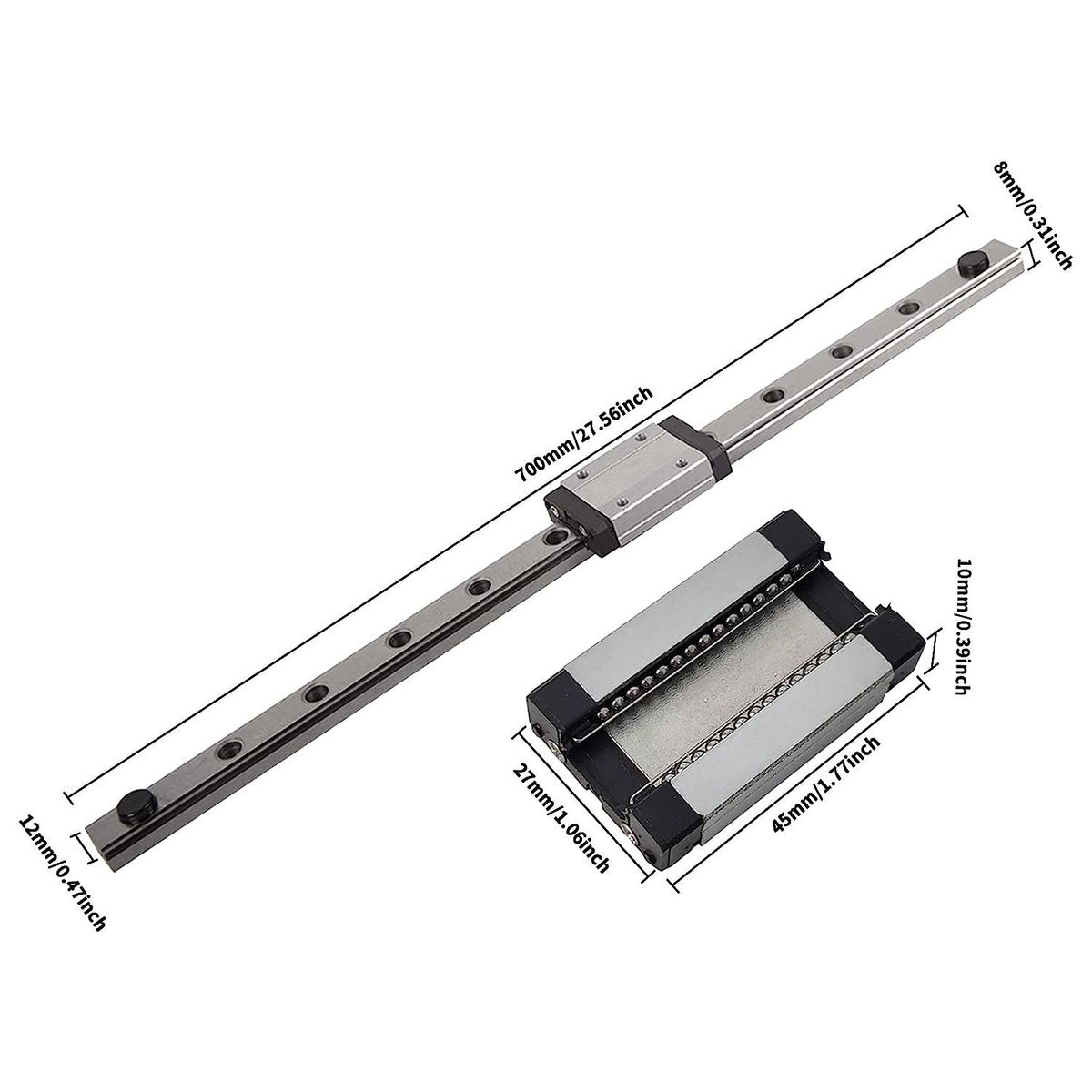

MGN12H 700mm Linear Rail Guide with Carriage Block Features: 1. Small size and light weight, especially suitable for small mechanical equipment 2.The linear rail and slider are made of high quality stainless steel. Slides with ball bearings - small contact surface, fast heat dissipation, low friction and fast movement. Only a little power to make the lathe run, which can significantly reduce the power consumption of the machine. 3.The slider can bear the load in four directions at the same time, and the load can be beared evenly in the direction of the parallel contact surface, ensuring high precision during operation. Specification: Model: MGN12H Rail Material: bearing steel Surface Material: electroplating (chrome plating) Slider Material: stainless steel Rail Length: 700mm/27.56inch Rail Width: 12mm/0.47inch Rail Height: 8mm/0.31inch Rail Hole Distance: 25mm/0.98inch Rail & Slider Combination Height: 13mm/0.51inch Slider Height: 10mm/0.39inch Rail Bolt: M3*8 Slider Thread Hole: M3*3.5 Package Includes: 1 × Linear Rail Guide 1 × Carriage Block
